ANTI-HAND PINCHING DEVICE

Product

Product Introduction

Applies to

Requirements

• Installation is required when the gap between the door panel and the jamb is 5mm or more and cannot be adjusted.
• The side contact device is exclusively applicable to the N:EX model.



  Category	Transom non-contact	Side contact
  Applicable models	WB, SU System available	N:EX (exclusive)
  Installation Location	Installed on the upper plate of the car entrance	Main floor hall jamb Car doors (optional)
  Operation Method	Door halts before hand entrapment, followed by a slow door opening after the warning buzzer activation.	White LED for arrival prediction and accident prevention. Red LED warns of potential hand entrapment, and the door opens slowly in response.
  Constraints	Peculiar conditions of the upper plate of the car entrance may prevent the installation	100, 200 Type jambs can be installed Applicable to car doors (optional) (Except for emergency elevators) (Interference between emergency ladder and entrance)

How to use

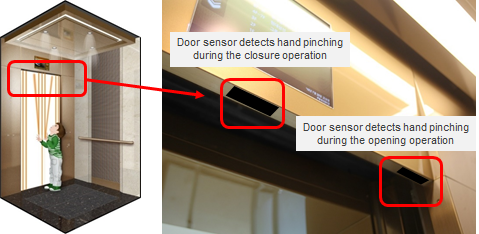

Transom non-contact operation

• The door halts and then opens when a hand is detected during the closure operation.
• The door halts when a hand is detected during the opening operation, and resumes opening at a slow speed after a buzzer sounds.
• The number and location of sensors depend on the door type.



  1SCO - 3 sensors	2SCO - 3 sensors	2SCO - 5 sensors

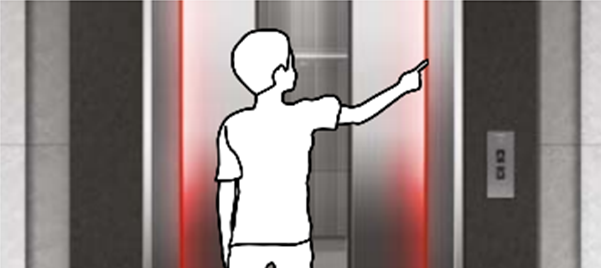

Side contact operation

• During regular operation, the white LED provides arrival forecasts and prevents hand-caught accidents.
• If a hand-caught accident occurs while in operation, the red LED activates as a warning, followed by a slow-speed door opening action.



  During normal operation	When hand pinching occurs

※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
