REPLACEABLE HALL SILL

Product

Product Introduction

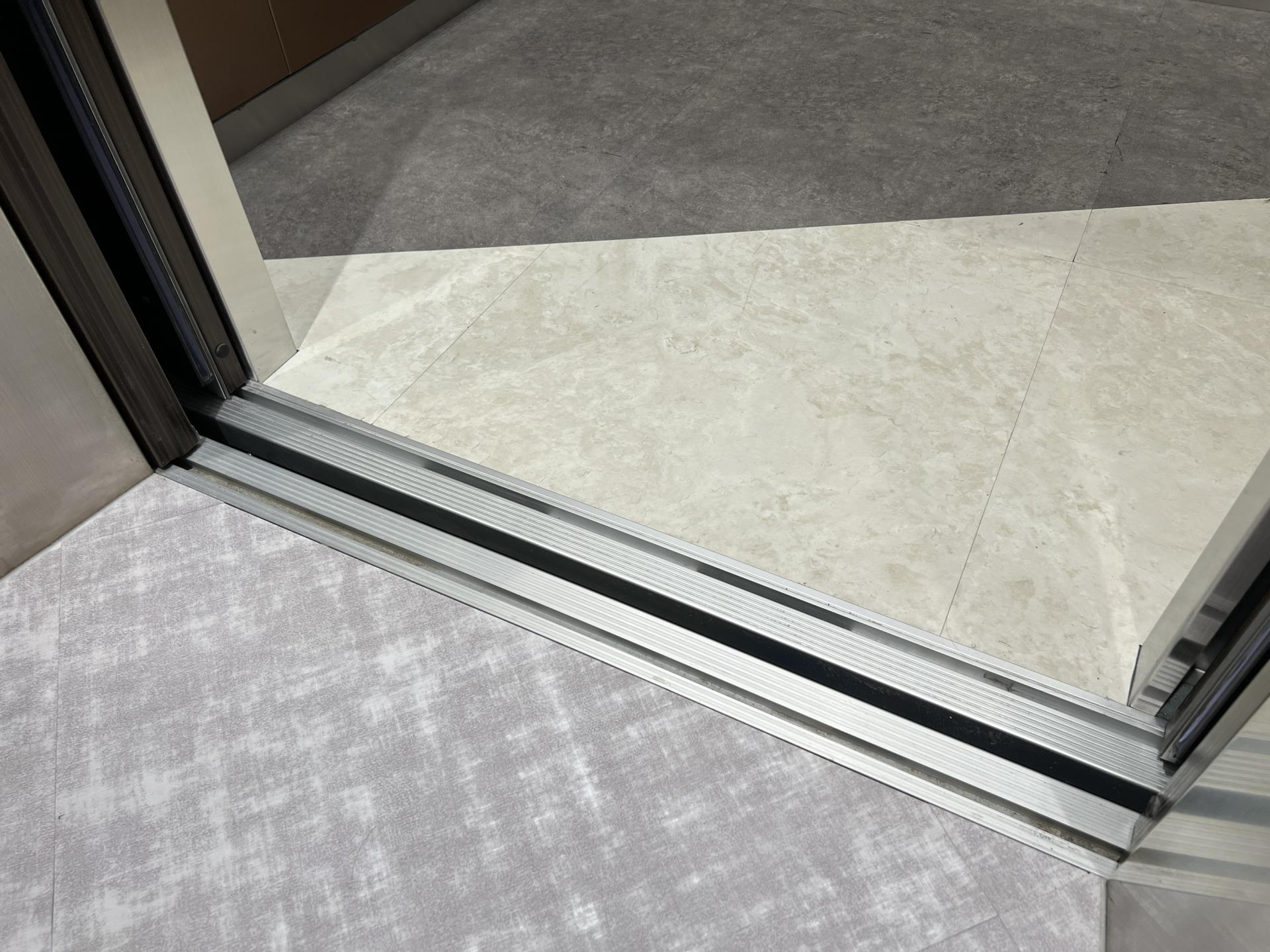

An elevator car sill designed for replacement without compromising architectural finishes in cases of damage such as scratches or dents that may occur during construction use.

General Hall Sill	Replaceable Hall Sill

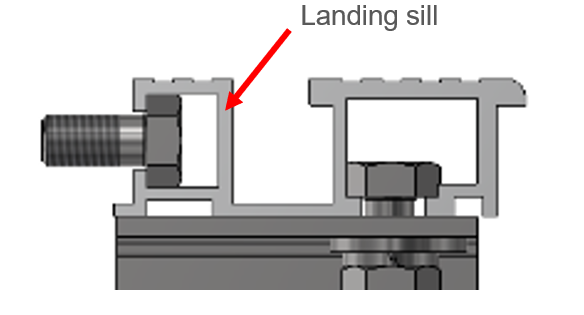

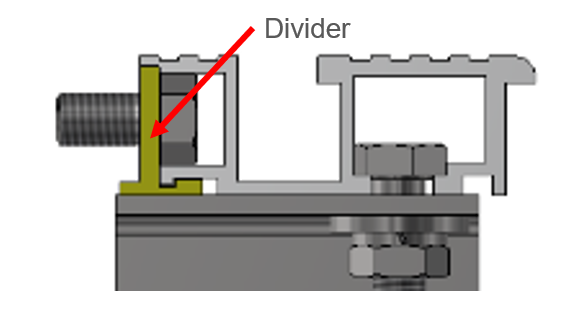

The sill is fixed between the jamb and the support, making it difficult to replace individual sills.	A divider is installed between the sill and the jamb, allowing for selective replacement when necessary.

Applies to

Requirements

• Due to the absence of fire certification, the use of fireproof doors is not permitted (the certification is expected to be approved after the 2nd quarter of 2024, subject to schedule changes).
• Applicable to the HL1 Car Doors
  - JJ (Door open width): 700-1,200mm
  - HH (Door height): 2,000-2,400mm

Key features

Features

• Easily replaceable hall sills

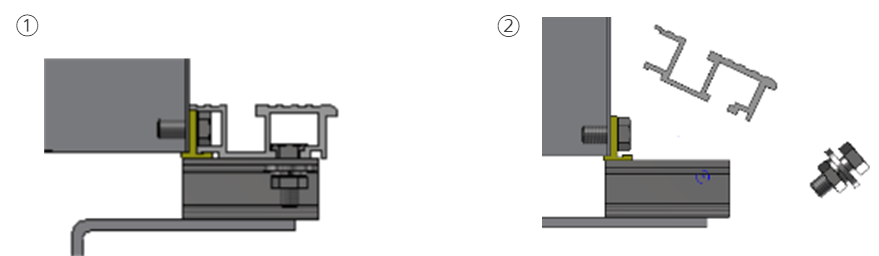

• The elevator car sill can be removed by pulling the sill forward after removing the door shoe of the car door and loosening the bolts on the sill and support plate.
