Product
Product Introduction
A product that enables comfortable elevator management throughout the year with automatic heating/cooling functions for maintaining suitable temperatures according to the season and air purification using HEPA filters, optimized for small elevators (7 to 13 passengers) where air conditioning installation was previously challenging.
Composition of HEPA Filter Auto Air Conditioner
※ Recommended filter replacement interval is 6 months, but it may vary depending on usage environment.
Applies to
Requirements
Compact design, installation possible in low-capacity elevators where air conditioning installation is difficult
Installation possible for capacities ranging from 550kg to 1,600kg (recommend installing 2 sets for capacities over 1,150kg)
Controller displays current air conditions and allows power control
For non-standard car sizes, please contact our Technical Sales Team
Key features
Features
Maintains optimal temperature inside the elevator year-round with heating and cooling functions
HEPA filters ensure clean air supply without fine dust even without cooling
Smallest and lightest elevator air conditioning unit, installation possible for small elevators (for 7 passengers)

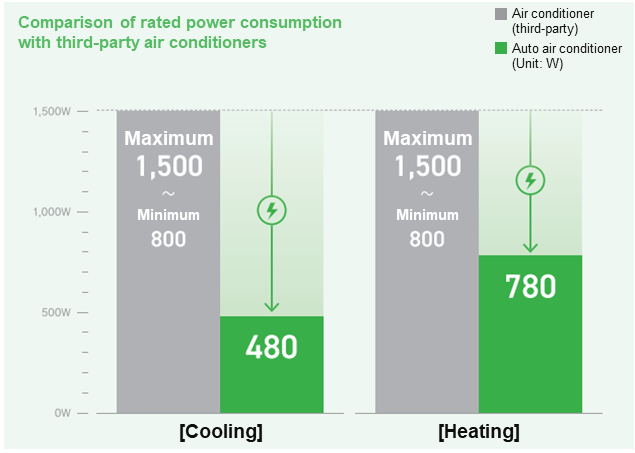

Energy-saving standby mode available through control program settings and temperature-based operation for power consumption reduction
Reference
Performance Test Results - Air Conditioner
※ The results is based on internal tests
Please note that actual cooling and heating performance may vary depending on real elevator operating conditions, so test results are for reference.
1) Cooling Test Result (condition test at ambient temperature of 29.0-30.0℃)
Category | Door closes | Repeating door opening/closure operations
(during operation) |
30 minutes passed | 10 minutes passed | 30 minutes passed |
| 7 passengers | Single unit in operation | 24.0℃ | 25.0℃ | 24.0℃ |
| Two units in operation | 21.0℃ | 22.1℃ | 22.0℃ |
| 10 passengers | Single unit in operation
| 24.5℃ | 25.0℃ | 24.0℃ |
Two units in operation
| 21.5℃ | 22.1℃ | 22.0℃ |
| 12 passengers | Single unit in operation
| 24.5℃ | 25.0℃ | 24.5℃ |
Two units in operation
| 23.0℃ | 23.0℃ | 23.0℃ |
| 15 passengers | Single unit in operation
| 24.5℃ | 25.5℃ | 25.0℃ |
Two units in operation
| 23.5℃ | 24.0℃ | 24.0℃ |
2) Heat Test Result (condition test at ambient temperature of 23.5~24.0℃)
Category | Door closes | Repeating door opening/closure operations
(during operation) |
30 minutes passed | 10 minutes passed | 30 minutes passed |
| 7 passengers | Single unit in operation | 31.0℃ | 31.0℃ | 31.0℃ |
| 10 passengers | Single unit in operation
| 29.5℃ | 29.5℃ | 29.5℃ |
| 12 passengers | Single unit in operation
| 28.0℃ | 28.0℃ | 28.0℃ |
| 15 passengers | Single unit in operation
| 27.0℃ | 27.0℃ | 27.0℃ |
※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
