Product
Product Introduction
The voice call serves as an interactive floor registration system. It asks, "Which floor are you going?" upon detecting a passenger via radar. Upon receiving the passenger's response, it automatically registers the destination floor. If no passenger is detected by the radar while waiting, the doors are quickly closed to increase operational efficiency. (Decreasing door closure time by 2.5 seconds)
HPI-integrated type
(PI-D110A_A) | External type (EM-V1A) |
* Applicable at new/remodeling sites with the corresponding HPI |  * Installable at sites with a transom panel applied |
Applies to
Requirements
External module can be applied to 200 and 201 type jambs with transom panel at the top of the door
Voice call cannot be applied when managing 3 cars or more as a group
Supports "Basement 00 floor" for basement floor registration, other call registration methods not supported
(ex. B 00 floor)
In case where only one voice call is installed in a 2-car group management site, uninstalled car call registration is possible (However, call registration is not possible at a 2-car site without group management)
Key features and mechanism
Features and Operation Principles
World's best, patent-pending radar sensor-based voice call

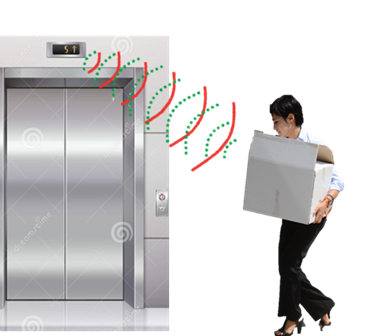

- STEP 1 : Passenger approach radar recognition
- High-performance radar sensor can detect passengers up to 3m away
- STEP 2 : Interactive AI Voice Call ON
- Register the destination floor by voice without pressing up/down call buttons or floor buttons.
- How to cancel the destination floor registration
: After registering the destination floor through voice recognition, canceling via voice recognition is
not possible. Cancelling the floor registration can be done through the car's OPB.
Voice assistance: "Which floor are you going?"
Passenger: “The fifth floor.” (Destination floor)
* The voice call automatically runs after radar sensing, eliminating the need for a separate Wake Up Call. If the voice recognition device is needed via Wake Up Call, it can be activated by saying “Hi Hyundai.
- STEP 3 : Quick door closure after passenger boarding
- Doors automatically close after passenger boarding, without needing to press the door close button
Features of Radar Sensor
※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
Product
Product Introduction
The voice call serves as an interactive floor registration system. It asks, "Which floor are you going?" upon detecting a passenger via radar. Upon receiving the passenger's response, it automatically registers the destination floor. If no passenger is detected by the radar while waiting, the doors are quickly closed to increase operational efficiency. (Decreasing door closure time by 2.5 seconds)
(PI-D110A_A)
Applies to
Requirements
(ex. B 00 floor)
Key features and mechanism
Features and Operation Principles
- High-performance radar sensor can detect passengers up to 3m away
- Register the destination floor by voice without pressing up/down call buttons or floor buttons.
- How to cancel the destination floor registration
: After registering the destination floor through voice recognition, canceling via voice recognition is
not possible. Cancelling the floor registration can be done through the car's OPB.
Voice assistance: "Which floor are you going?"
Passenger: “The fifth floor.” (Destination floor)
* The voice call automatically runs after radar sensing, eliminating the need for a separate Wake Up Call. If the voice recognition device is needed via Wake Up Call, it can be activated by saying “Hi Hyundai.
- Doors automatically close after passenger boarding, without needing to press the door close button

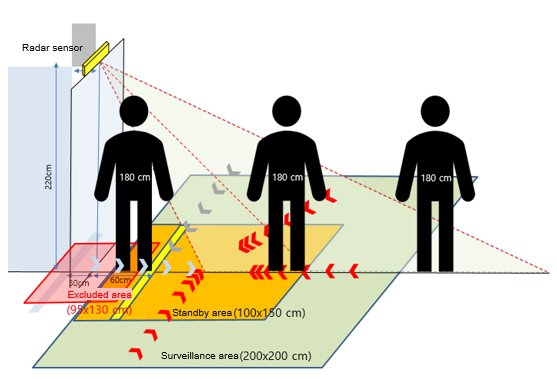

(Tracks up to 5 waiting passengers simultaneously, with a maximum sensing distance of 3m)
※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
