OMNI TOUCH BUTTON

Product

Product Introduction

An IR sensor-integrated button designed to operate by simply bringing your finger close to the sensor, eliminating the need to press the button

Call activation through touchless sensor recognition

Applicable to various OPB types

Applies to

Requirements

Max supported number of floors: 48 floors (varies by OPB type)

Button type: T1 button (21 buttons, IR sensor integrated)

Compatible OPB types for IR buttons (6 types)

OPP-N2T1	OPP-D2T1	OPP-L2T1	OPP-N5T1	OPP-D5T1	OPP-L5T1

Key features

Features

Recognize hand gestures of visually impaired individuals

Utilizing two proximity sensors, one for short-range and one for long-range, to accurately distinguish hand gestures of visually impaired individuals for precise floor registration gestures only.

Providing Push Function

Applicable even for the handicapped elevators for whom the conventional 90, 94 buttons are not compatible

* 90/94 buttons: Types incompatible with our Touchless buttons for the handicapped elevators

- 90 buttons - Button edge light (green) / Backlight inside the button
- 94 buttons - Button edge light (green) / No backlight inside the button

Providing the same push functionality as regular buttons, preventing discomfort for passengers unfamiliar with touchless buttons.

Durability of Buttons and Sensors

Ensuring quality through rigorous button and sensor durability testing (tested with approx. 2 million operation cycles).

Actuation principle

Operation Method

During normal operation

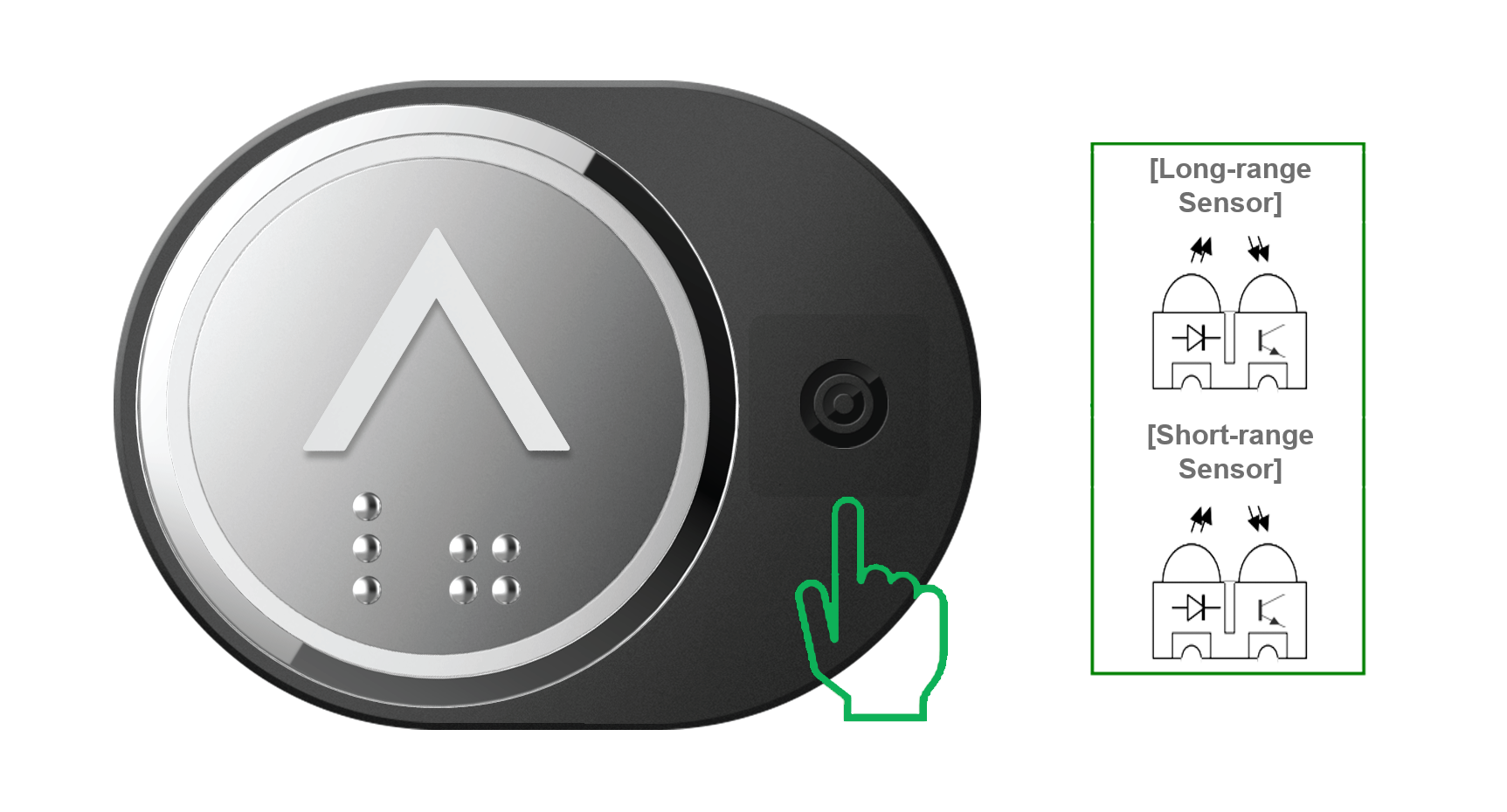

The finger is sequentially detected as it passes through the long-range sensor (25mm distance from the button surface) and then the short-range sensor (5mm distance from the button surface)

Hand's tactile action (recognition for visually impaired individuals)

The following scenarios result in button-touching recognition, leading to floor registration through button pressing rather than sensor detection

- When the passenger's finger is rapidly detected by both sensors

(within 55ms of long-range sensor detection followed by short-range sensor detection)

- When detected simultaneously by other floor sensors in the vicinity

※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
