Product

Product Introduction

A product that enables touchless operation powered by position control sensing technology while maintaining the appearance and functionality of elevator buttons

ccbe9575a47ce.png  Accurate in sensing hesitant hand gestures of visually impaired individuals and precisely recognizes floor registration actions

307a1cefd9014.png Various design options are available


Mono (1 Bar)Duo (2 Bar)Buried typeVirtual 10 Key


  • Mono (Exposed Type) : Prevents hand collision with the bar during Braille recognition by visually impaired individuals (1 type: Chrome + Silver Mix)
  • Duo (Exposed Type) : Suitable for wider button arrangements or control panels with a slim design (4 types: Brown, Chrome, Silver, and Titanium)
  • Buried Type : Premium product with a harmonious flush mount design (N:EX option applicable)
  • Virtual 10-Key Model : Can be applied as a Sub OPB for emergency and disability elevators, designed in a Badge 10 Key format

Applies to

Requirements

6b038a65d500b.png Applicable OPBs by Air Touch Type

  • Buried Type: Compatible with OPP-LA321, LA21A, LA21B Types
  • Exposed Type (Mono/Duo): Compatible with OPP-D/N5xx series & OPP-D/N2xx series

8694977958491.png Maximum number of applicable floors

  • Exposed Type (Mono/Duo) : up to 42 floors
  • Buried Type (LA21A, LA21B): Standard Type up to 32 floors, Narrow Type up to 24 floors
  • For sites with more floors, the applicability should be tested in advance through on-site, non-standard review.



Key features

Features

6b038a65d500b.pngRecognizing hand gestures of visually impaired individuals

  • Utilizes cutting-edge position recognition technology to cater to visually impaired individuals and prevent malfunctions that can occur during Braille recognition

8694977958491.pngAccurate and Swift Detection

  • Rapid sensor recognition speed regardless of glove usage
  • Enables flawless touchless implementation for multiple buttons, not just a single button
  • Superior recognition distance and operation compared to the conventional 90, 94 buttons

8694977958491.pngDiverse Design Variations

  • Options for exposed type (Bar Type), buried type, or Virtual 10 Key type based on usage

           ※ Recommended usage by design

                 - Exposed Type: Service sites with existing control panels and sites focusing on cost-effectiveness

                 - Buried Type: New construction sites like apartments, offices, etc.

                 - Virtual 10 Key: Easily applicable to sub control panels without physical buttons

  • Various product options that match the design theme


Mechanism

Operation Methodc3b4efe3dacdc.png



6b038a65d500b.pngUtilizes high-precision multi-touch infrared (IR) sensors


896b372681d63.png Gesture-based interface eliminates the need for direct physical contact

5e22dba1905e7.png Approaching positions of IP sensors installed at 2mm intervals

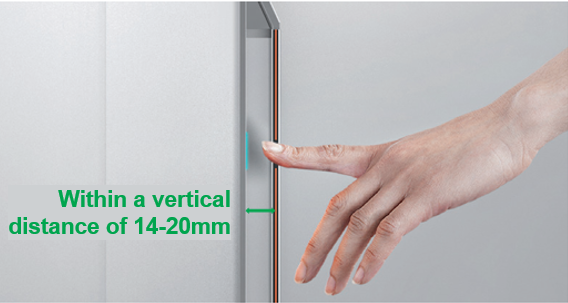

76e1214d9c9b7.png Detection sensing range

  • Vertical direction: Within a vertical distance of 14-20mm from the button surface
  • Horizontal direction: Entire button area on each floor

    (Recognition is supported even when pointing near the button edges.)

Reference

Application Examples

Mono (1 Bar)Duo (2 Bar)Buried TypeVirtual 10 Key




※ The images in this material are provided for illustrative purposes and may differ slightly from the actual products. Please be aware that certain specifications are subject to change.
